Application library

Battery protection guidance by installation position.

Review the geometry, operating conditions and validation inputs that guide thermal, mechanical, electrical and fire-protection component selection.

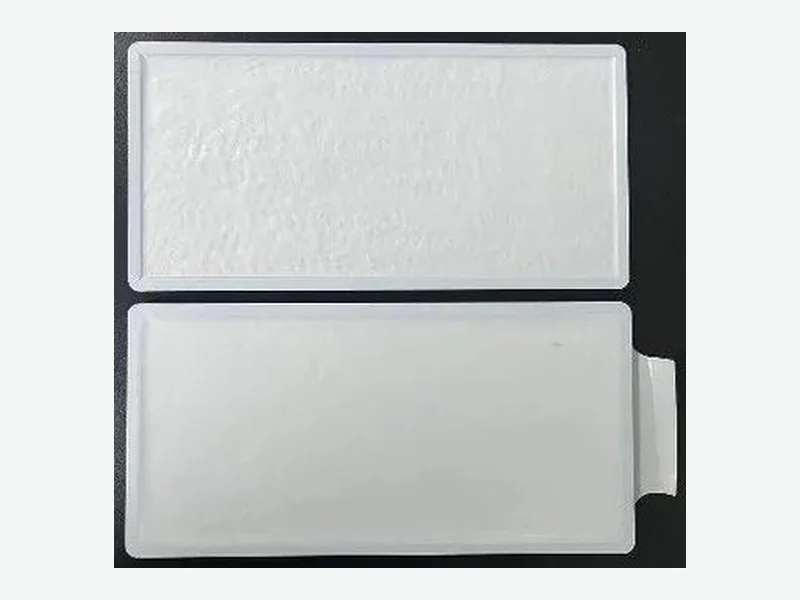

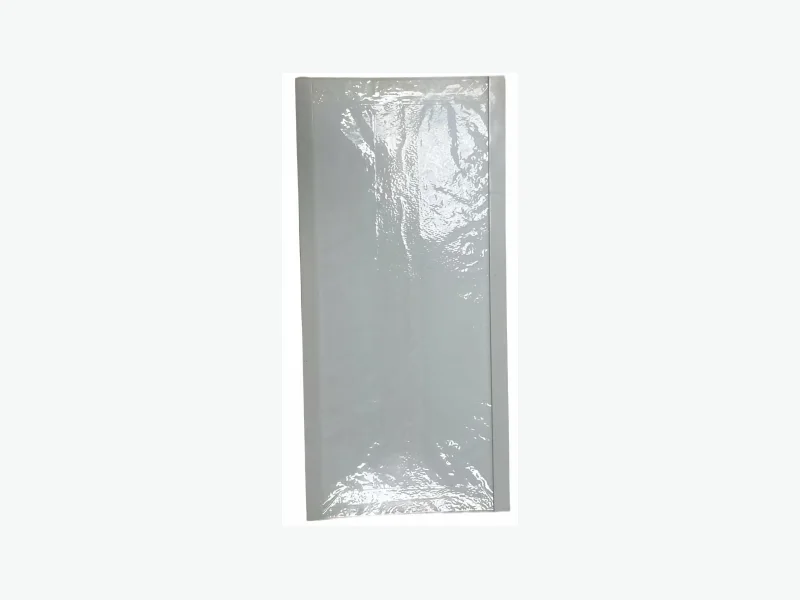

Representative inter-cell thermal barrier components
01

Thermal Runaway Protection for Prismatic Cells

Define an inter-cell barrier from the prismatic cell geometry, gap, vent path and target propagation test.

View application details
Representative converted thermal barrier strip
02

LFP Battery Thermal Protection Components

Component selection for LFP modules and packs based on cell energy, architecture and the required propagation outcome.

View application details

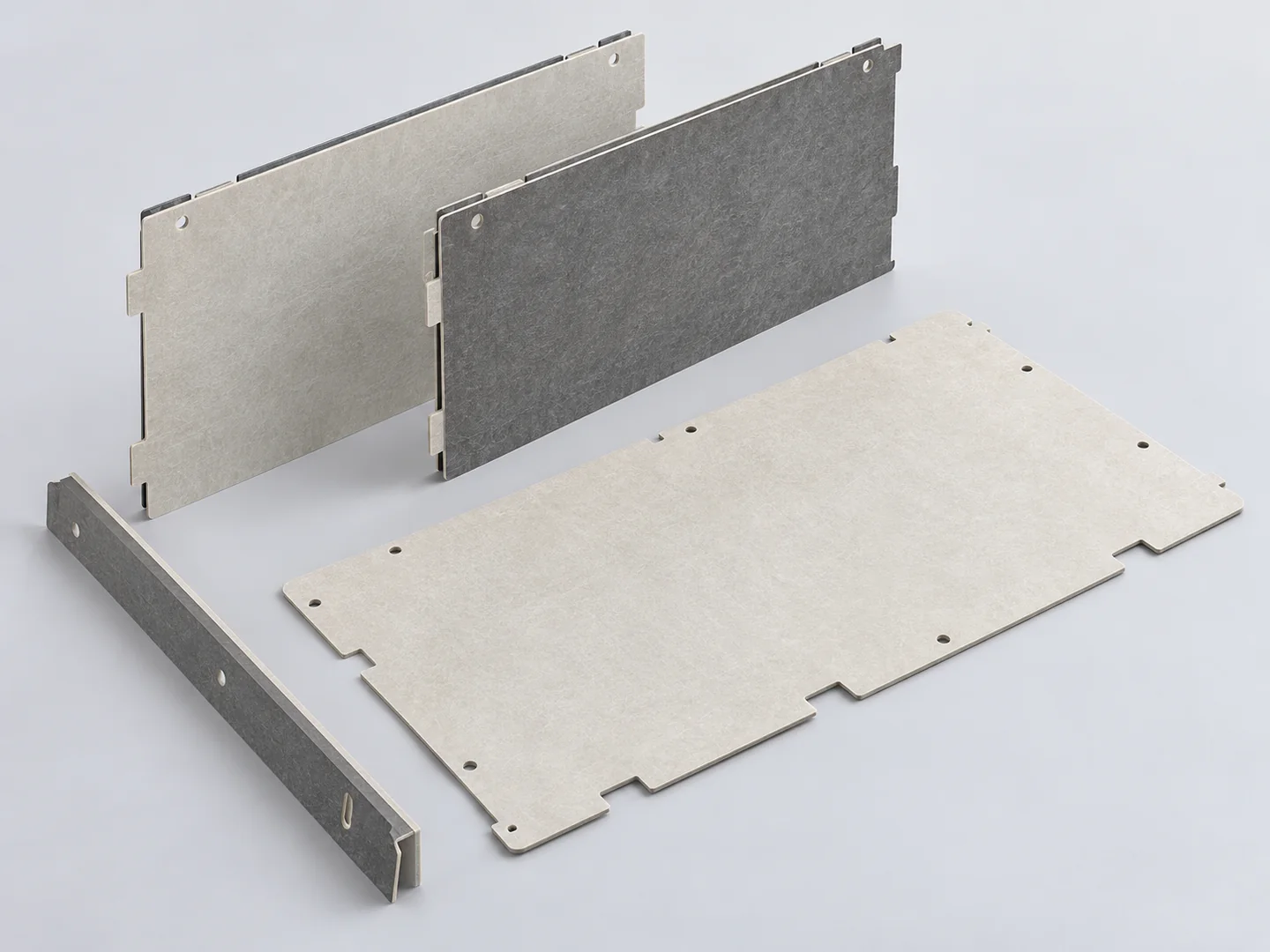

Representative large-format thermal barrier components for ESS module and enclosure integration
03

ESS Battery Thermal Runaway Protection

Barrier, shield, insulation and vent-position components for stationary storage from cell to installation interface.

View application details

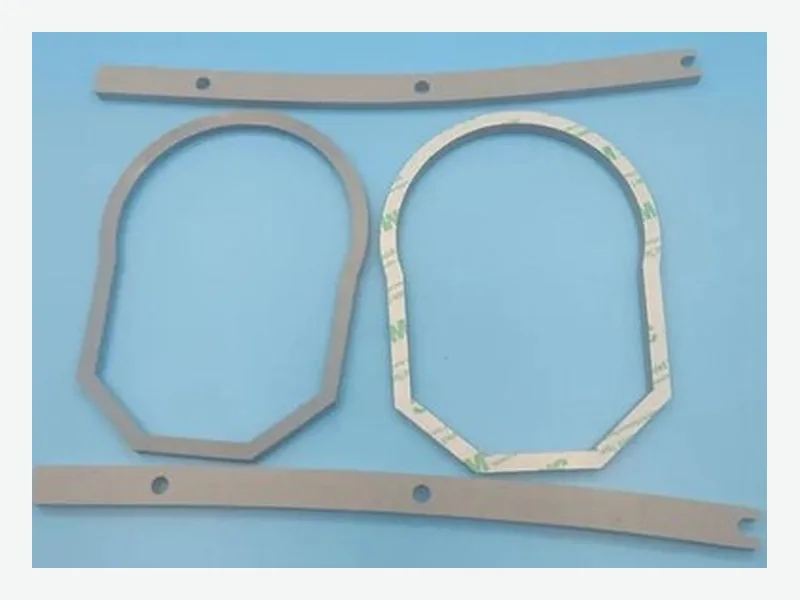

Representative die-cut pads for compression and tolerance management
04

Battery Cell Compression Management

Use cell expansion, tolerance and target pressure to define the pad’s working strain across battery life.

View application details

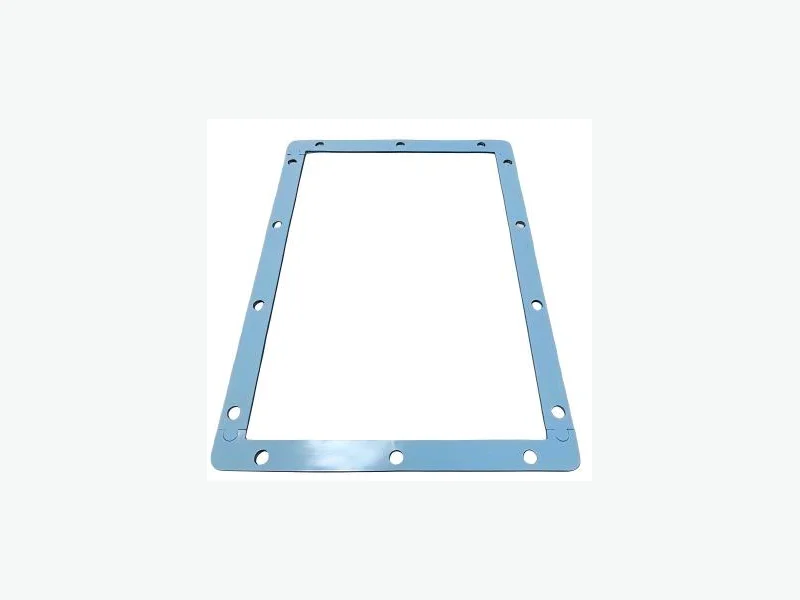

Representative custom die-cut frame for module interface evaluation
05

Battery Module Expansion Management

Manage swelling, preload and long-term force at cell stack, end plate and module-side interfaces.

View application details

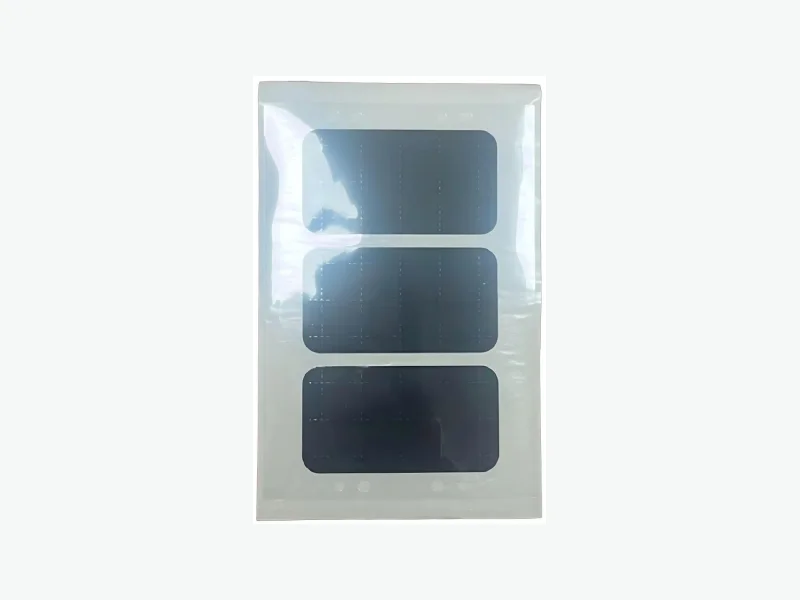

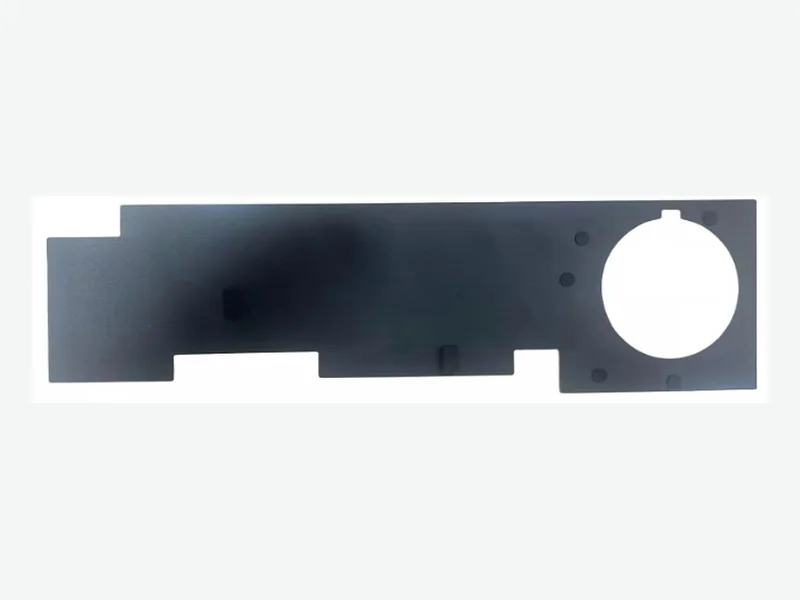

Representative custom die-cut polymer insulation parts
06

EV Battery Electrical Insulation

Converted film, sheet and mica components for high-voltage cell, module and pack interfaces.

View application details
Representative precision-cut insulation geometries
07

Custom Busbar Insulation Components

Die-cut, folded and laminated insulation around busbar geometry, terminals and high-voltage interfaces.

View application details

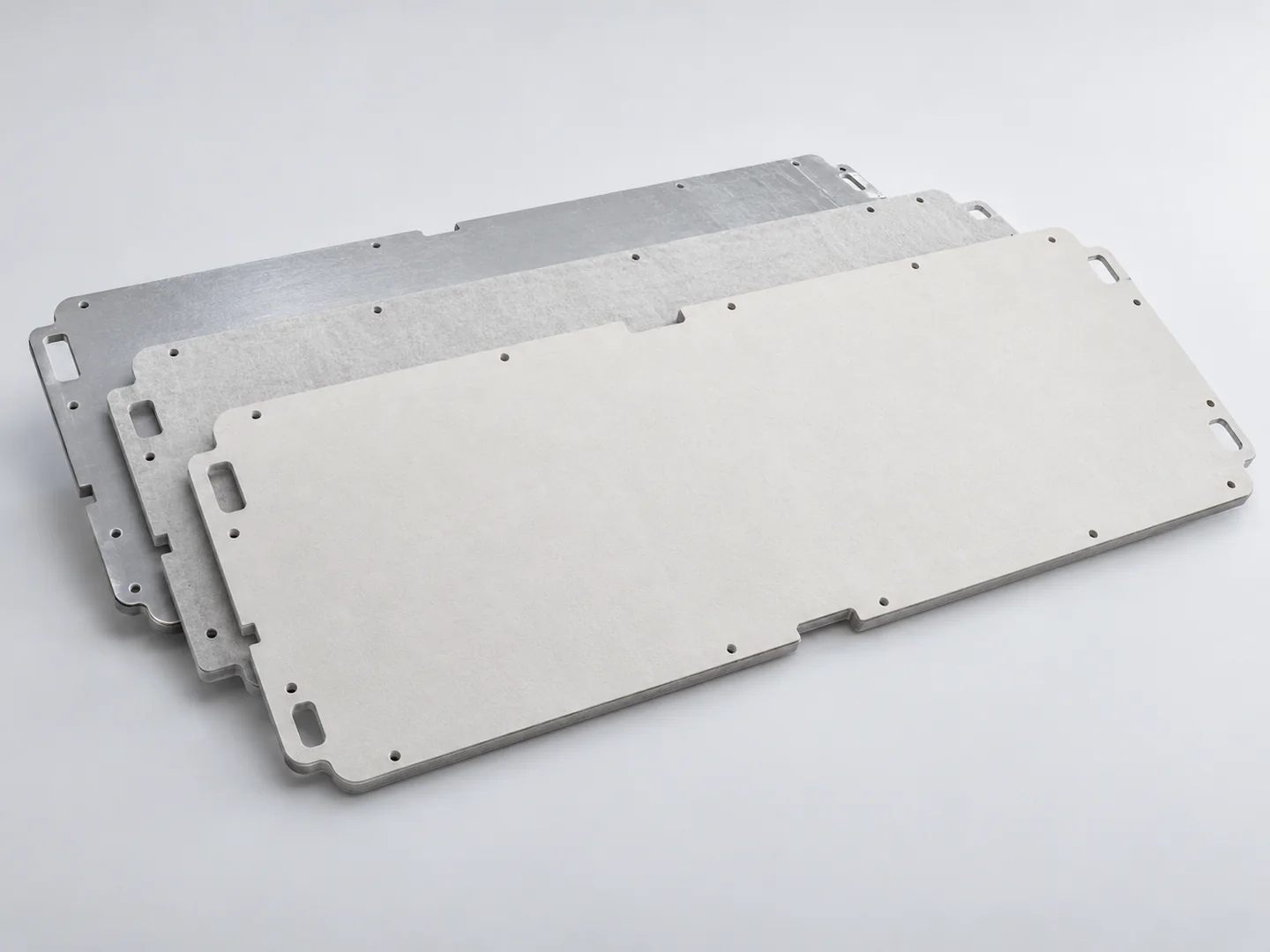

Representative large-format module-to-module thermal barrier panels
08

Module-to-Module Thermal Protection

Large-format partitions and shields defined by pack geometry, mounting and the target transient exposure.

View application details

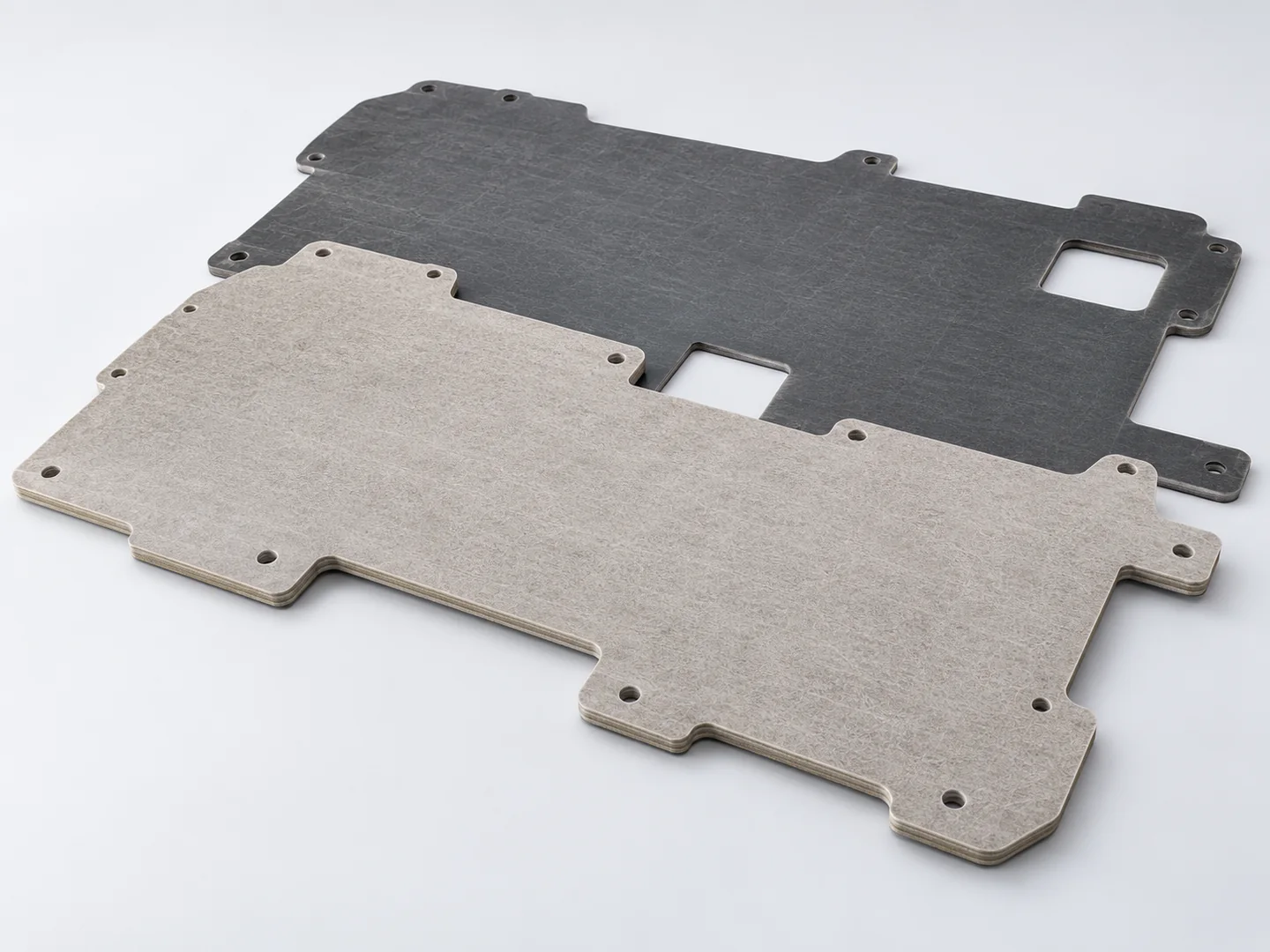

Representative layered battery pack fire-shield components made to drawing
09

Battery Pack Fire Protection Components

Converted fire shields and layered barriers for pack lid, underbody, module separation and enclosure interfaces.

View application details

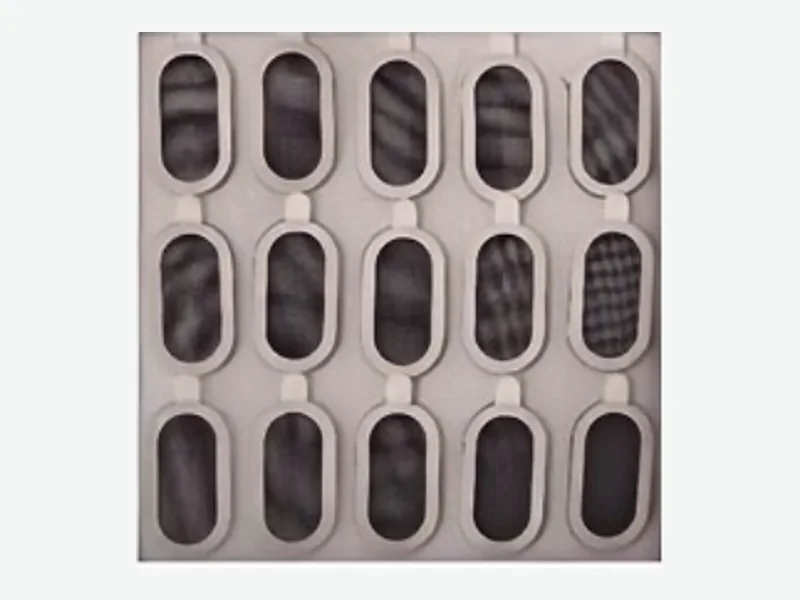

Representative die-cut vent and sealing component geometry
10

Battery Vent Flame Protection Components

Converted protection around defined vent paths, heat/flame exposure and normal-service sealing requirements.

View application details

Have a drawing or a battery component requirement?

Submit battery application
